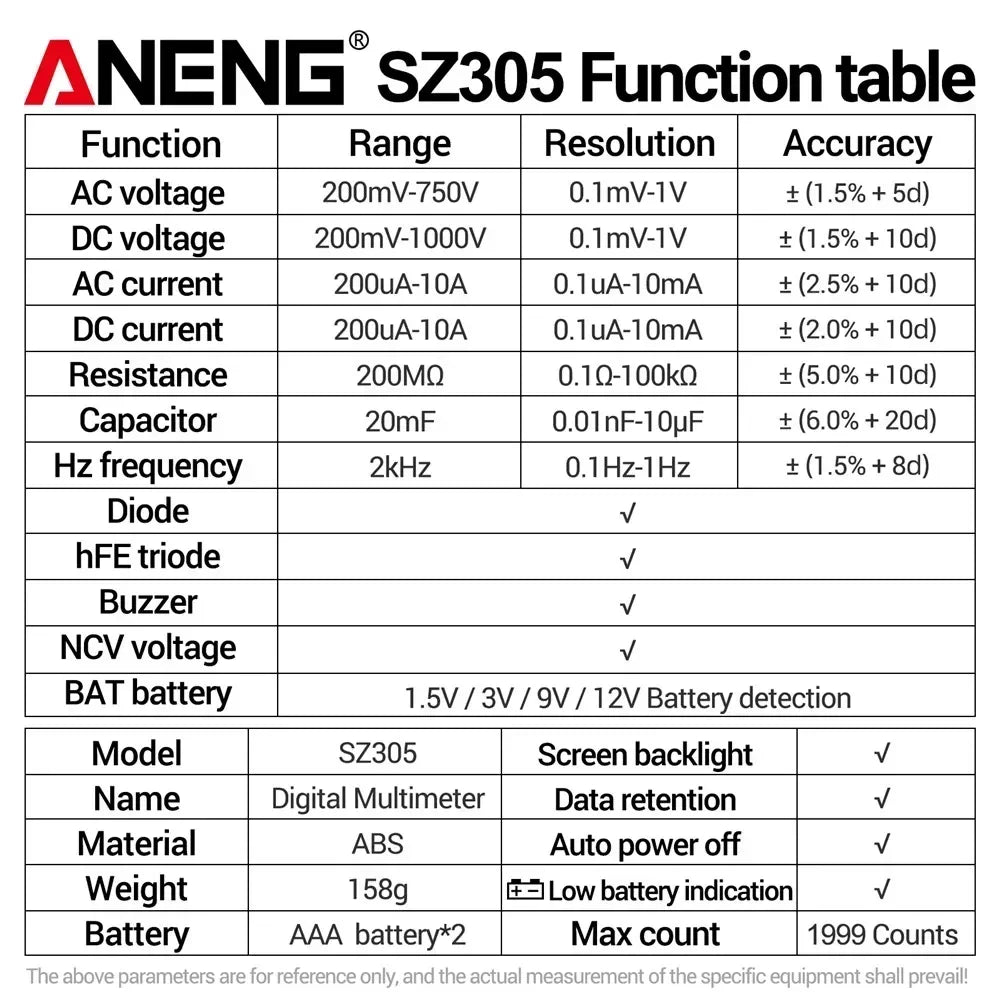

SPECIFICATIONS
|
Function |
Range |
Resolution |
Accuracy |
|
AC voltage |
200mV-750V |
0.1mV-1V |
±(1.5%+5d) |
|
DC voltage |
200mV-1000V |
0.1mV-1V |
±(1.5%+10d) |
|
AC current |
200uA-10A |
0.1uA-10mA |
±(2.5%+10d) |
|
DC current |
200uA-10A |
0.1uA-10mA |
±(2.0%+10d) |
|
Resistance |
200MΩ |
0.1Ω-100kΩ |
±(5.0%+ 10d) |
|
Capacitor |
20mF |
0.01nF-10uF |
±(6.0%+ 20d) |
|
Hz frequency |
2kHz |
0.1Hz-1Hz |
±(1.5%+8d) |
|
Specification |
188x91x38 mm |
Screen backlight |
√ |
|
Name |

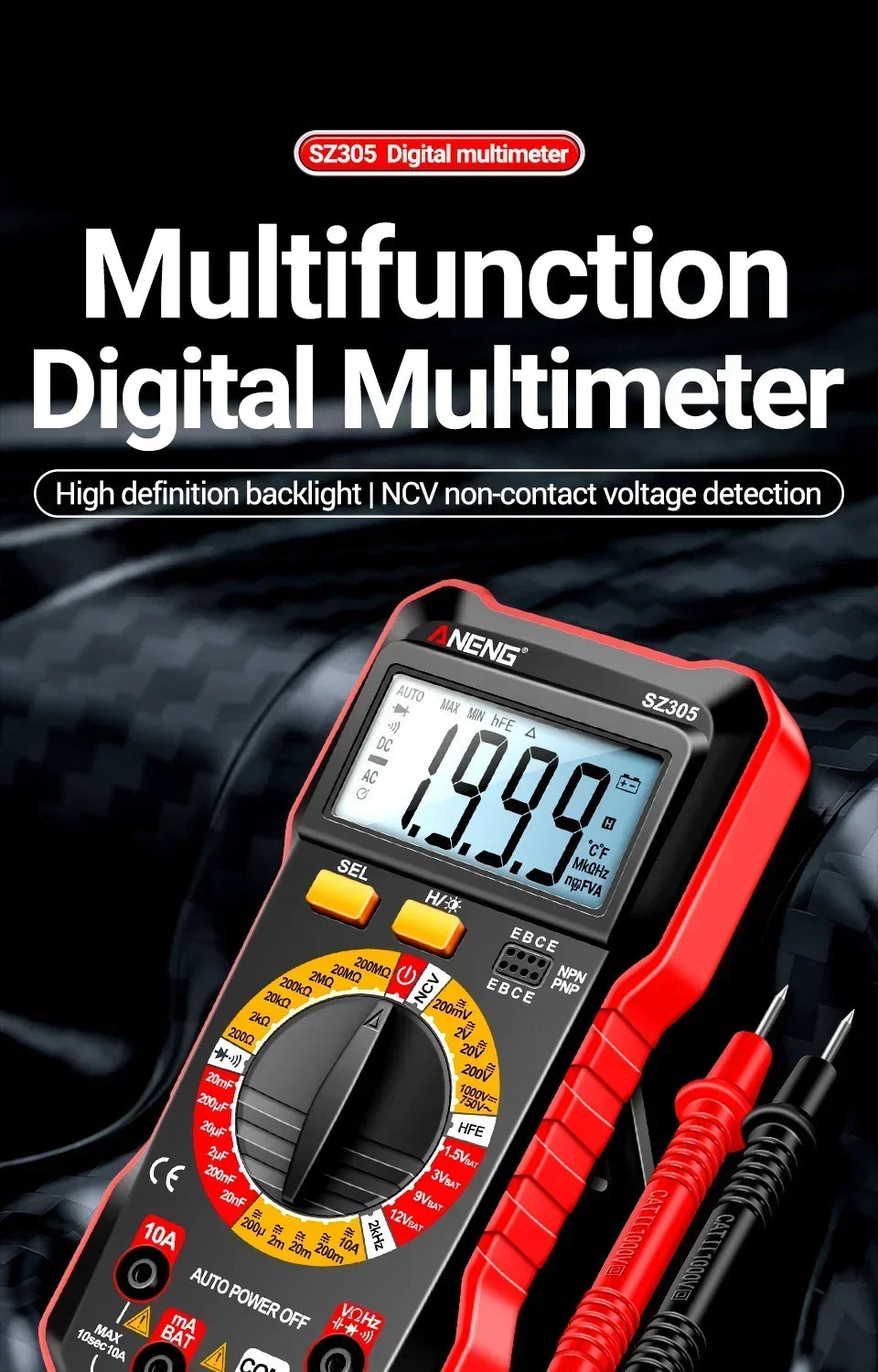

Digital Multimeter |
Data retention |
√ |
|
Material |
ABS |
Auto power off |
√ |
|
Weight |
158g |
Low battery indication |
√ |
|
Battery |
AAA battery*2 |
Max count |
1999 Counts |
|
Diode |
√ |
||
|

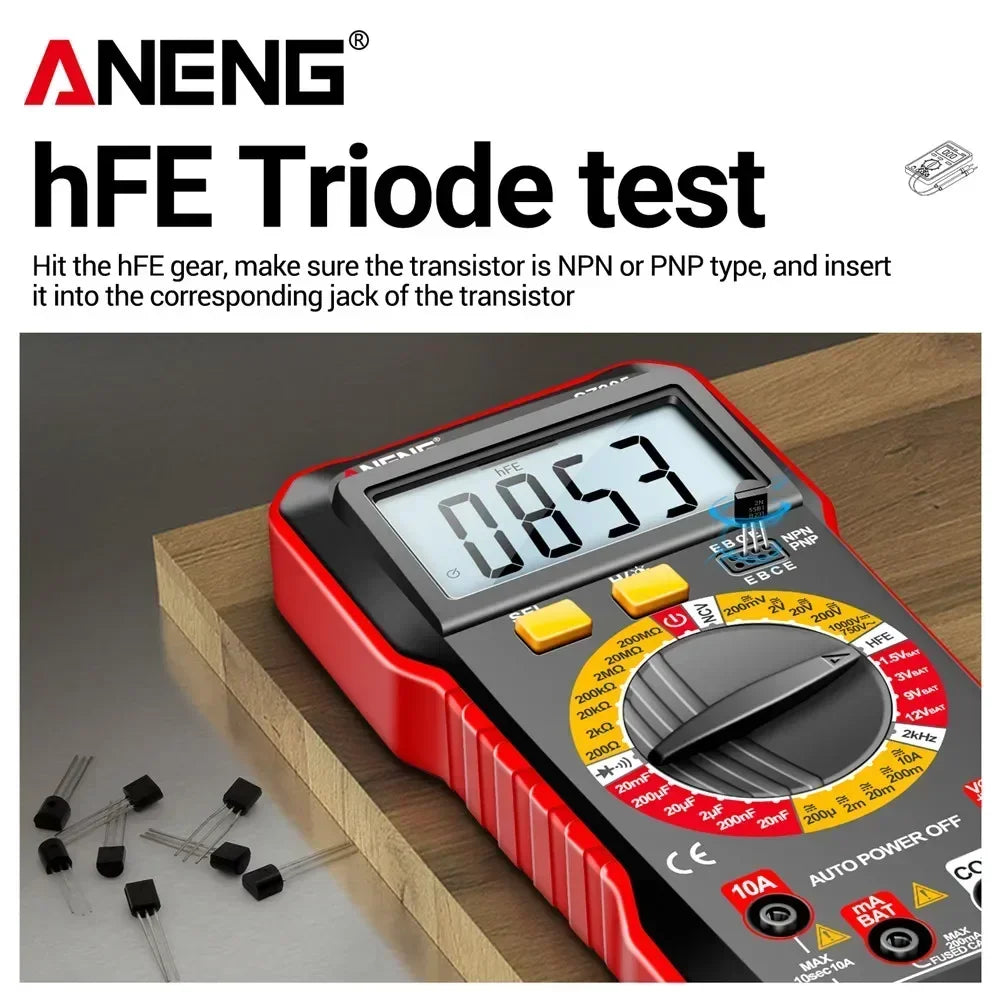

hFE triode |
√ |
||
|
Buzzer |
√ |
||
|
NCV voltage |
√ |
||
|
BAT battery |

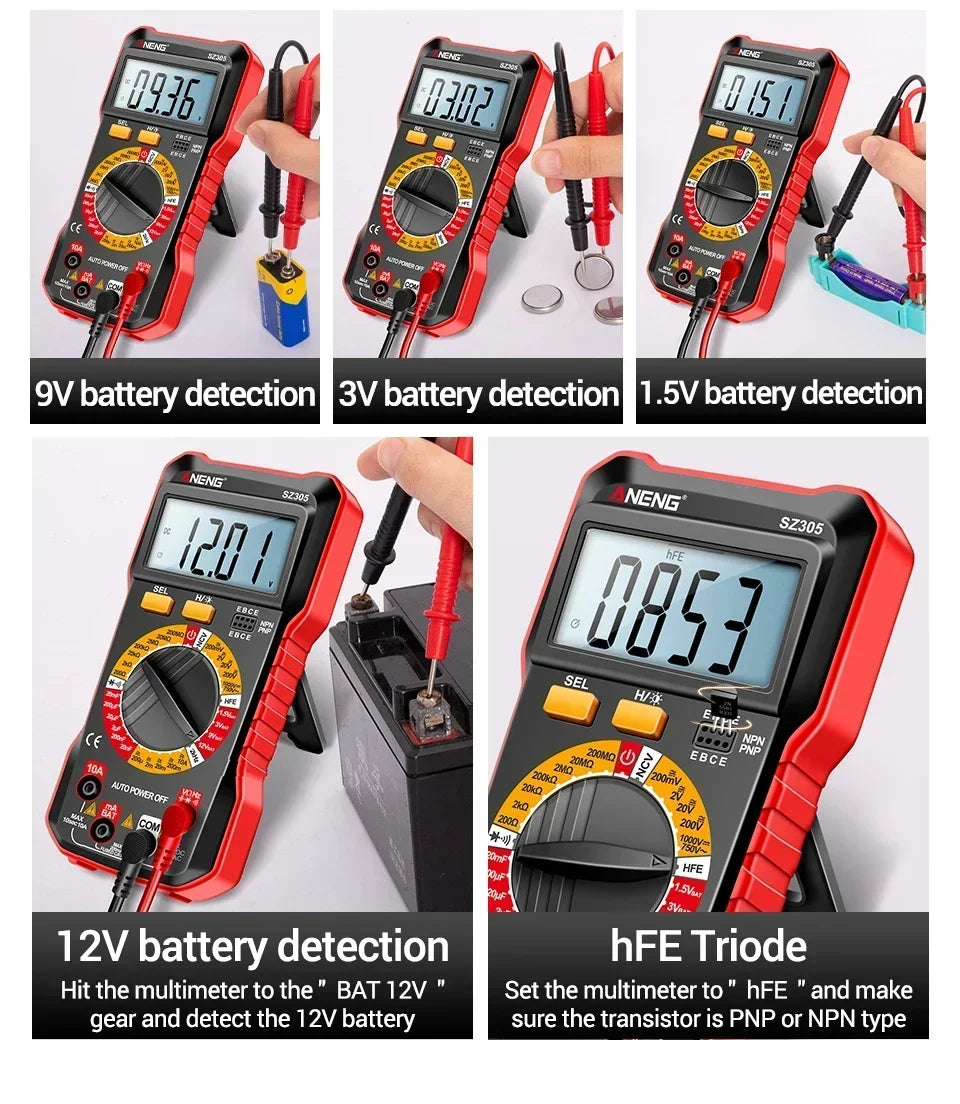

1.5V / 3V / 9V /12V Battery detection |
||
Packaging content:
1 x Multimeter ( Without battery )
1 x Test lead
1 x English User Manual
